Godox LDX50R RGB LED Light Panel

The LDX50R RGB LED Light Panel from Godox is a compact 14 x 12" fixture with RGBWW capability to enable you to quickly adjust the color temperature from 2500 to 10,000K. The light can be dimmed from 0 to 100% throughout its CCT range, giving you high CRI/TLCI ratings of 96 as indicators of advanced accuracy in color rendering. Furthermore, this panel provides a soft light well suited for video use with 14 special effects to lend realism to your shoot. Adjustments can be made either onboard, remotely through an optional wireless remote control, or via an app directly from your smartphone.

The LDX50R is rated for output up to 2340 lux at 3.3' and 5600K, drawing a maximum of 63W of power. For powering the panel, an AC adapter is included for connecting to a wall socket. Additionally, those looking to take the light outdoors can run it on on two optional NP-F batteries or a separately available V-mount battery connected by an optional D-Tap cable. Godox includes a carry bag for storage and transportation.

Bright, Soft Light Source

Designed to illuminate your creative vision, the LDX50R gives you access to literally millions of color combinations. For enhanced versatility, you can easily switch between CCT and FX modes. By short-pressing the built-in analog dials of the unit, quickly select and customize the intensity or lighting effect.

RGB mode with four mixed colors

HSI color mode allows for full-color control over hue, saturation, and intensity

Gel mode allows for a variety of 60 popular color filters

14 Customizable Lighting Effects

RGB cycle, party, police car, flash, lightning, cloudy, broken bulb, TV, candle, fire, fireworks, explosion, welding, and SOS. These 14 customizable creative lighting effects will help you achieve different looks.

Greater Control

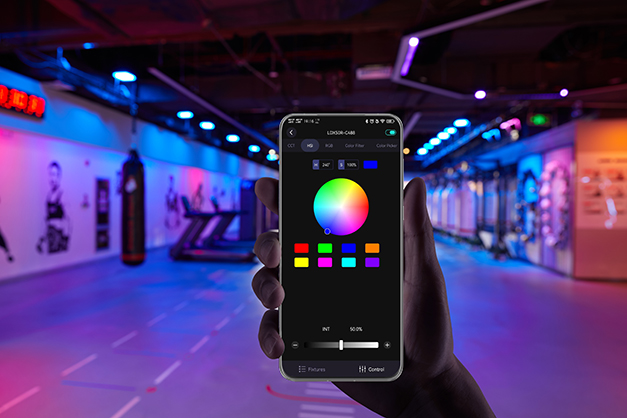

The Godox Light app from your mobile device controls the light via Bluetooth from up to 98.4' away

Optional RC-R9II remote controls the light via 2.4 GHz from up to 164' away

Construction Details

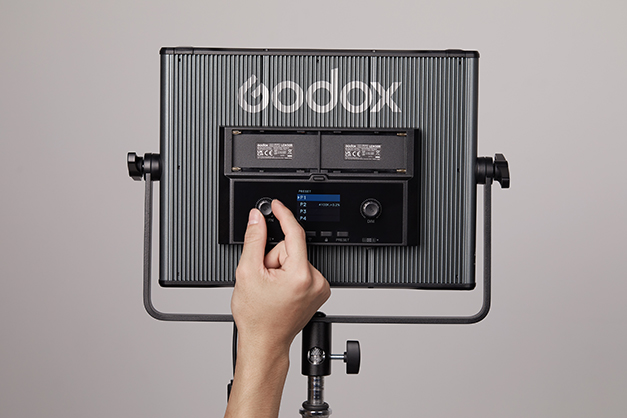

Integrated screen for viewing settings

Built-in dual NP-F plate

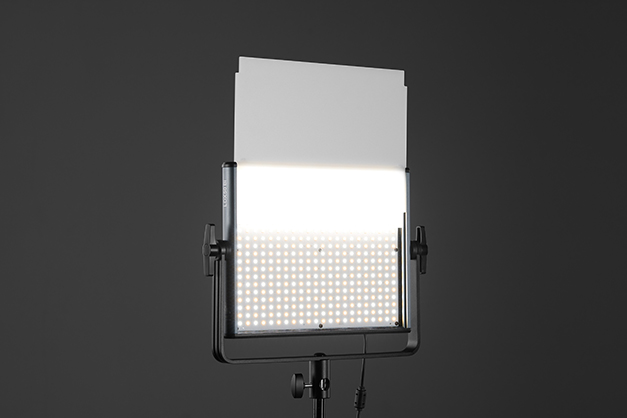

Detachable diffuser and optional barndoors produce a soft and controllable quality of light

360° U-type yoke for flexibility

Metal housing

• Light Fixture
• Item Type
• 1x LED Light Panel
• Included Filters
• Diffusion
• Included Storage Case
• 1x Case
• Photometrics
• 3200K:
• 204 fc / 2200 Lux at 3.3' / 1 m*
• 760 fc / 8190 Lux at 1.6' / 0.5 m
• 55 fc / 594 Lux at 6.6' / 2 m
• 4300K:
• 208 fc / 2240 Lux at 3.3' / 1 m*
• 777 fc / 8370 Lux at 1.6' / 0.5 m
• 56 fc / 606 Lux at 6.6' / 2 m
• 5600K:
• 217 fc / 2340 Lux at 3.3' / 1 m*
• 808 fc / 8700 Lux at 1.6' / 0.5 m
• 58 fc / 633 Lux at 6.6' / 2 m
• 6500K:
• 223 fc / 2410 Lux at 3.3' / 1 m*
• 830 fc / 8940 Lux at 1.6' / 0.5 m
• 60 fc / 650 Lux at 6.6' / 2 m
• *Standardized Measurement Supplied by the Manufacturer
• Color Temperature
• 2500 to 10,000K
• Color Modes
• RGB
• Color Accuracy Standard
• CRI 96
• TLCI 96
• Dimming
• Built-In Dimmer
• • 0 to 100%
• Cooling System
• No
• Umbrella Mount
• No
• Front Accessory Mount
• No
• Connectivity
• Wireless Remote Control Type
• Bluetooth
• Radio/RF *Remote Not Included
• Mobile App Compatible
• Yes: Android & iOS
• App Name: Godox Light
• Wireless Channels
• 32
• Wireless Groups
• 16
• Wireless Frequency
• 2.4 GHz
• Wireless Range
• 98.4' / 30 m (Bluetooth)
• 164' / 50 m (Radio/RF)
• Power & I/O
• Power Source
• AC to DC Adapter (Included)
• Battery (Not Included)
• Battery Plate Type
• 2x Sony L-Series / NP-F (Built-In)
• Battery
• 2x Sony-Type L-Series / NP-F Rechargeable (Not Included)
• or
• 1x V-Mount Rechargeable (Not Included)
• DC Input Power
• 20 VDC
• Power Consumption
• 63 W
• Mounting
• Yoke Type
• Manually-Operated Yoke
• Fixture Mounting
• Not Specified by Manufacturer
• Environmental
• Environmental Protection
• No
• General
• Display
• Yes
• Materials
• Metal
• Dimensions
• 14.1 x 12 x 3" / 35.7 x 30.5 x 7.5 cm
• Weight
• 4.1 lb / 1.86 kg
